Stainless Steel

Stainless Steel

  • 304 Stainless Steel
  • 316 Stainless Steel
  • Duplex Stainless Steel



Use
Finish
Standards
Properties
304 Stainless Steel
Balustrades, cladding fixings, decorative profiles
Brushed, polished
ASTM A240 / BS EN 10088
High corrosion resistance, excellent formability
Use
Finish
Properties
316 Stainless Steel
Coastal façades, industrial zones, chemical sectors
Satin, bead-blasted
Marine-grade durability, chloride resistance
Grades
Use
Properties
Duplex Stainless Steel
2205, 2507
High-load structural elements, offshore environments, fire-rated systems
Twice the strength of 304/316, stress corrosion resistance

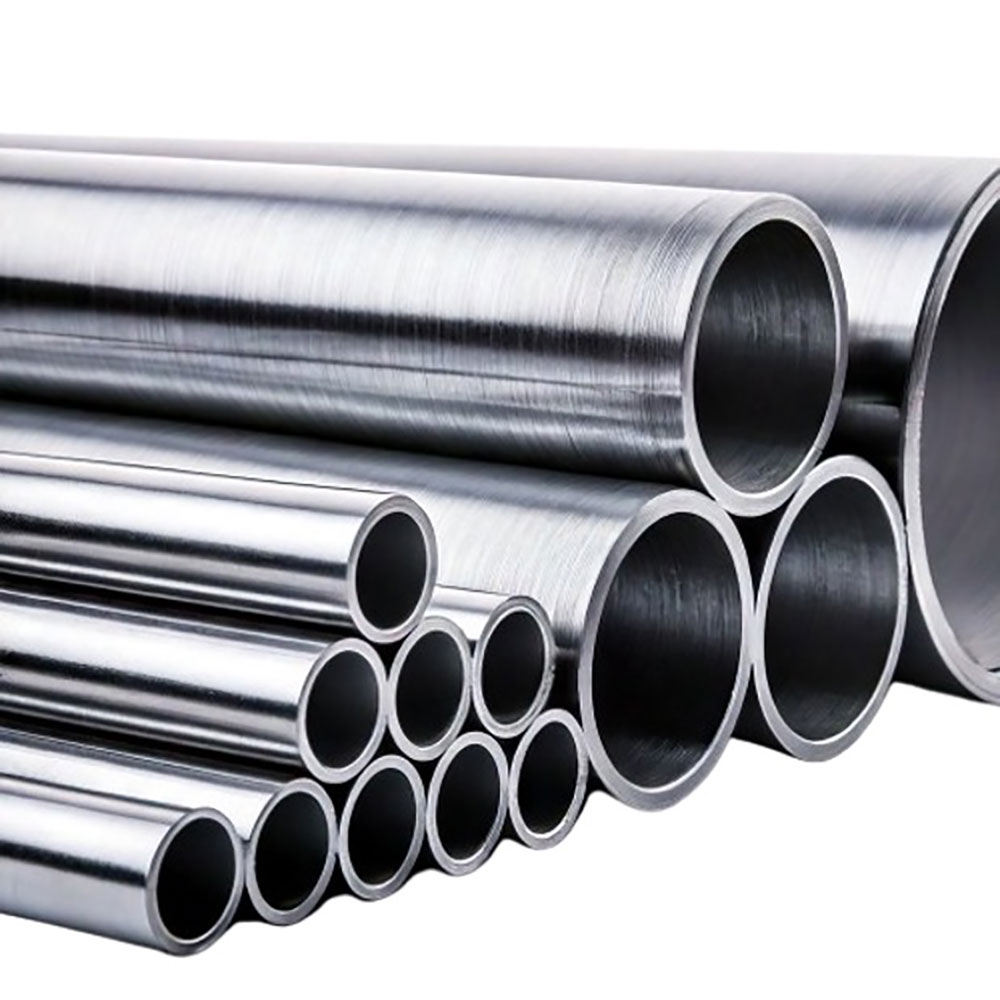

Stainless Steel: Tubes

Form meets function in every dimension. Our stainless steel tube portfolio is engineered for performance across architectural, industrial, and decorative applications. From seamless pressure-rated pipes to bespoke oval profiles, each product delivers strength, corrosion resistance, and aesthetic versatility.

Grades
Thickness
Length
Finishes
Heat Treatment
Standards
Certificates
Applications
Round Tube / Pipe
AISI 304, 304L, 310, 316, 316L, 316Ti, 321, 409, 430, 441, Duplex
0.50 – 4 mm
6 m (custom lengths available)
Pickled, passivated, satin, polished
Annealing (on request)
ISO 1127; ASTM A-269, A-249, A-312
EN 10357
Chemical processing, energy systems, decorative installations, electronics
Stainless Steel – Tubes
Grades
Thickness
Dimensions
Length
Welding
Standards
Applications

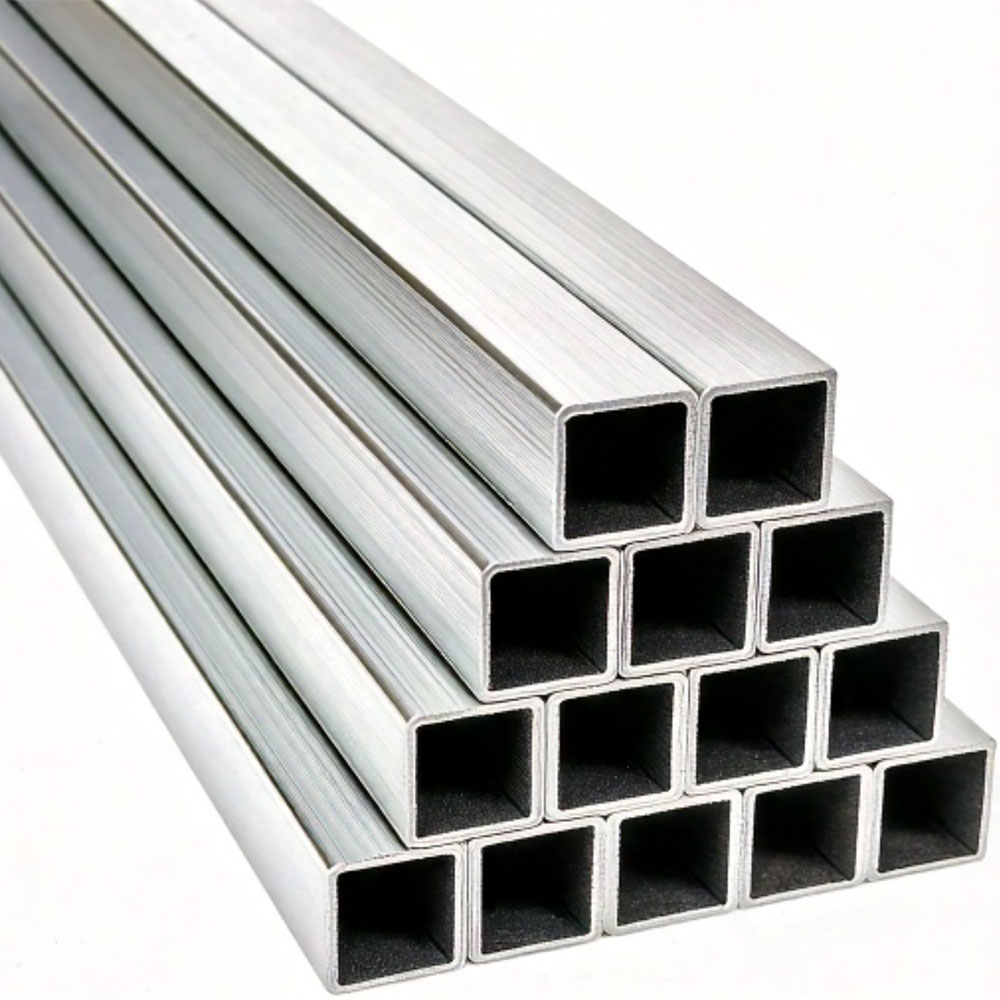

Box Section (Square Tube)
AISI 304, 304L, 316, 316L, 316Ti, 441, 430
1 – 5 mm
10×10 – 150×150 mm
6 m
HF (TIG / LASER on request)
ASTM A554 + EN 10219-2
Doors, windows, railings, urban furniture, shelving
Box Section (Square Tube)
Grades
Thickness
Length
Dimensions
Applications
Properties
Seamless Tube
AISI 304, 304L, 316, 316L, Duplex, Superduplex, 904L
SCH 10s – SCH 160S
4 – 7 m
Ø 6 – 219.1 mm
Heat exchangers, pressure boilers, chemical plants
No welds, superior strength, high-pressure performance
Seamless Tube
Overview
Applications
Benefits

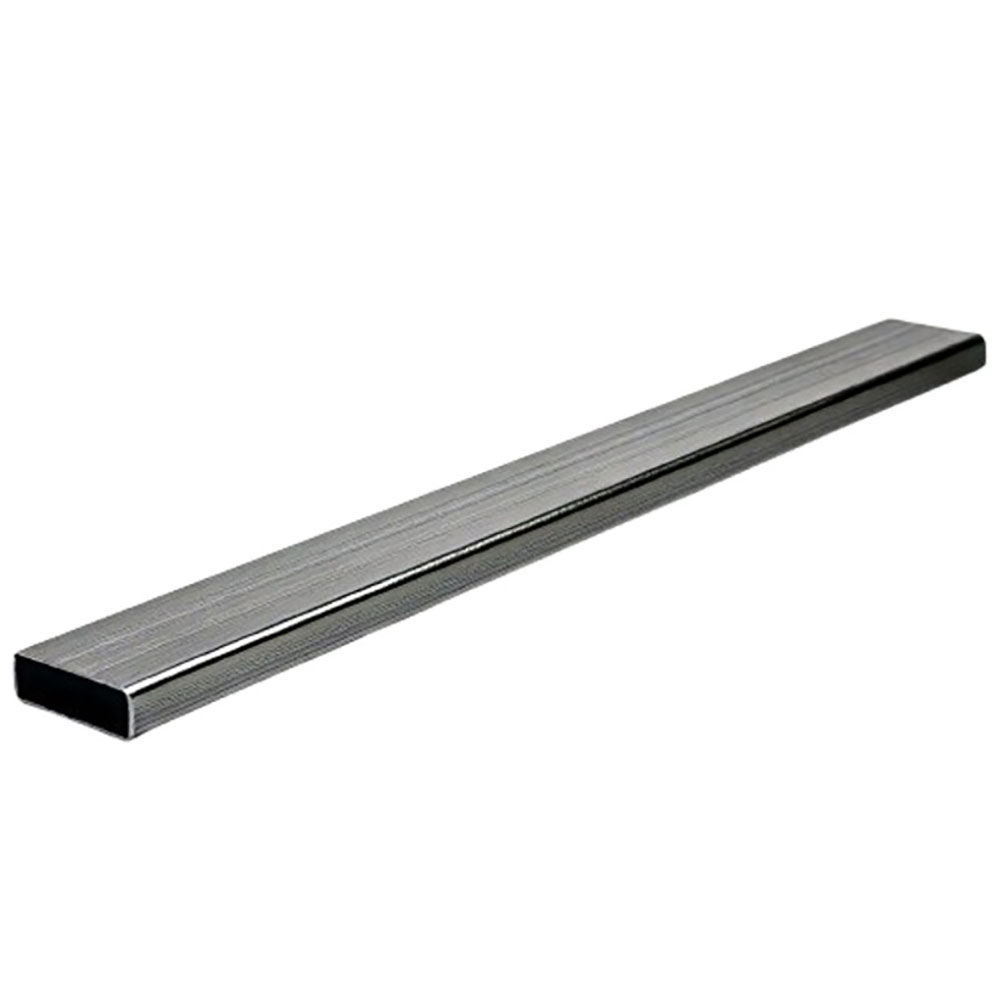

Flat Tube
Rectangular cross-section with extended length
Handrails, brackets, structural trims
Lightweight, cost-effective, superior surface finish
Flat Tube
Grades
Applications
Properties

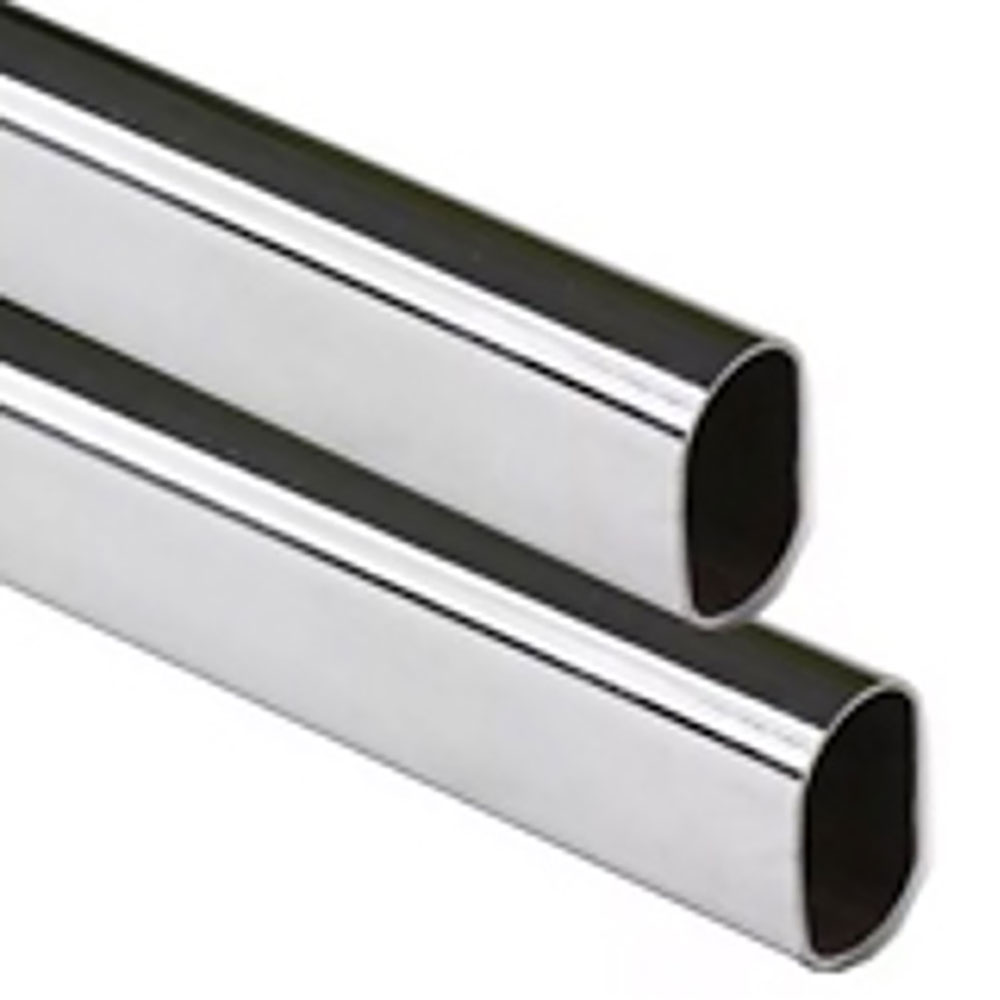

Oval Tube
AISI 304, 304L
Decorative and aerodynamic installations
Unique geometry, smooth contours, modern aesthetic
Oval Tube<br />

Stainless Steel: Flat Products

Precision-engineered surfaces for architectural and industrial excellence. Our flat products range includes cold and hot rolled sheets, precision strips, and temper-rolled materials—each tailored for performance, finish, and formability.

Grades
Thickness
Widths
Finishes
Properties
Applications

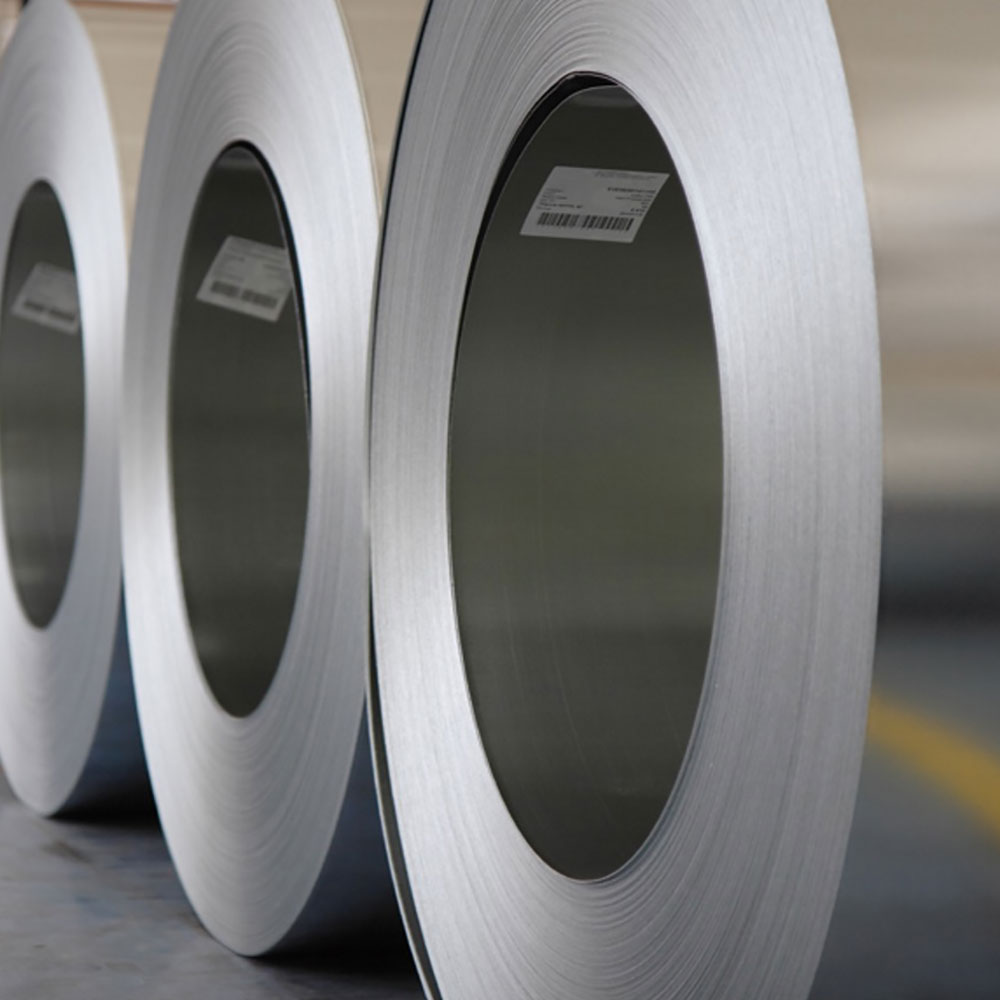

Cold Rolled
AISI 201, 301, 304, 304L, 316L, 321, 316Ti, 310S, 441, 430, 420, 409, Duplex
0.4 – 6 mm
5 mm – 2000 mm
2B, BA, custom on request
Tight tolerances, enhanced mechanical strength
Decorative panels, precision components, façade cladding
Cold Rolled
Grades
Thickness
Widths
HRSD
Applications

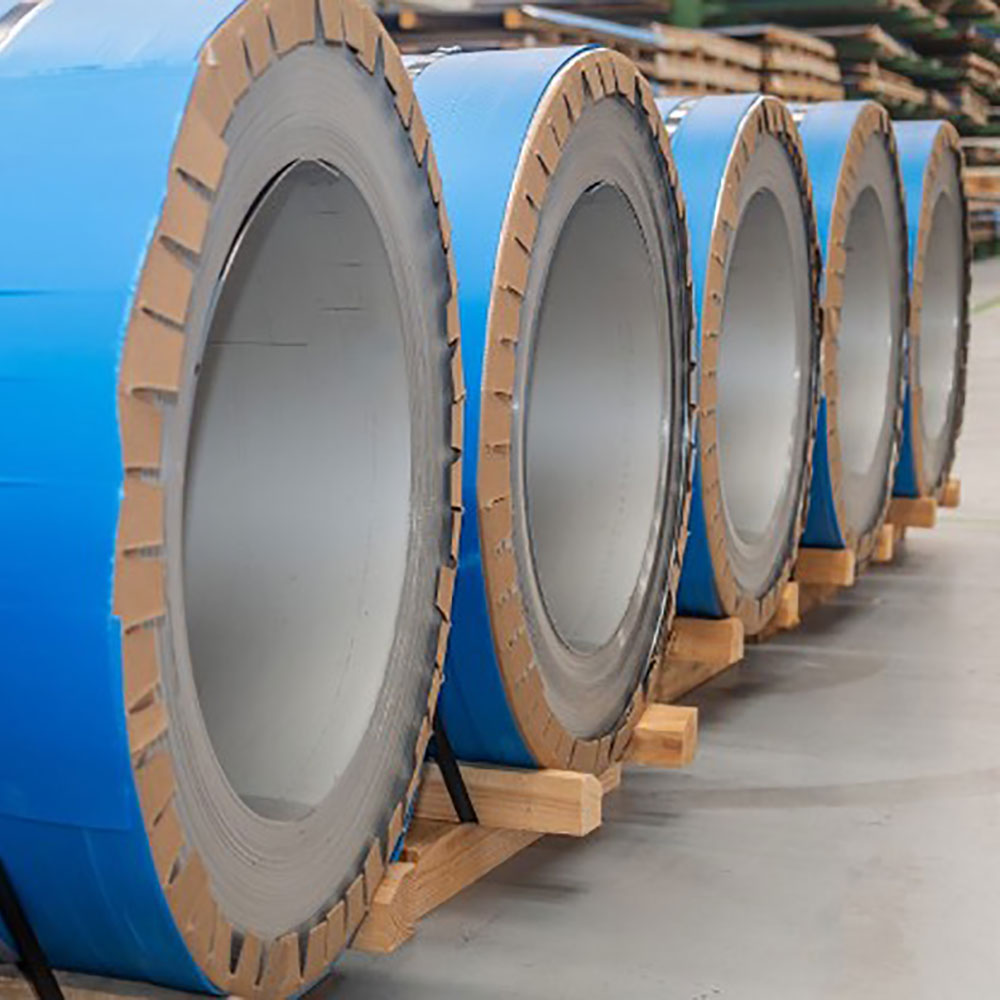

Hot Rolled Coils
AISI 301, 304, 304L, 316L, 321, 316Ti, 310S, 430, 420, 409, Duplex
2 – 10 mm
1000, 1250, 1500, 2000 mm
1
Structural plates, industrial fabrication, load-bearing panels
Hot Rolled Coils
Grades
Thickness
Max Width
Coating
Standards
Applications
Properties

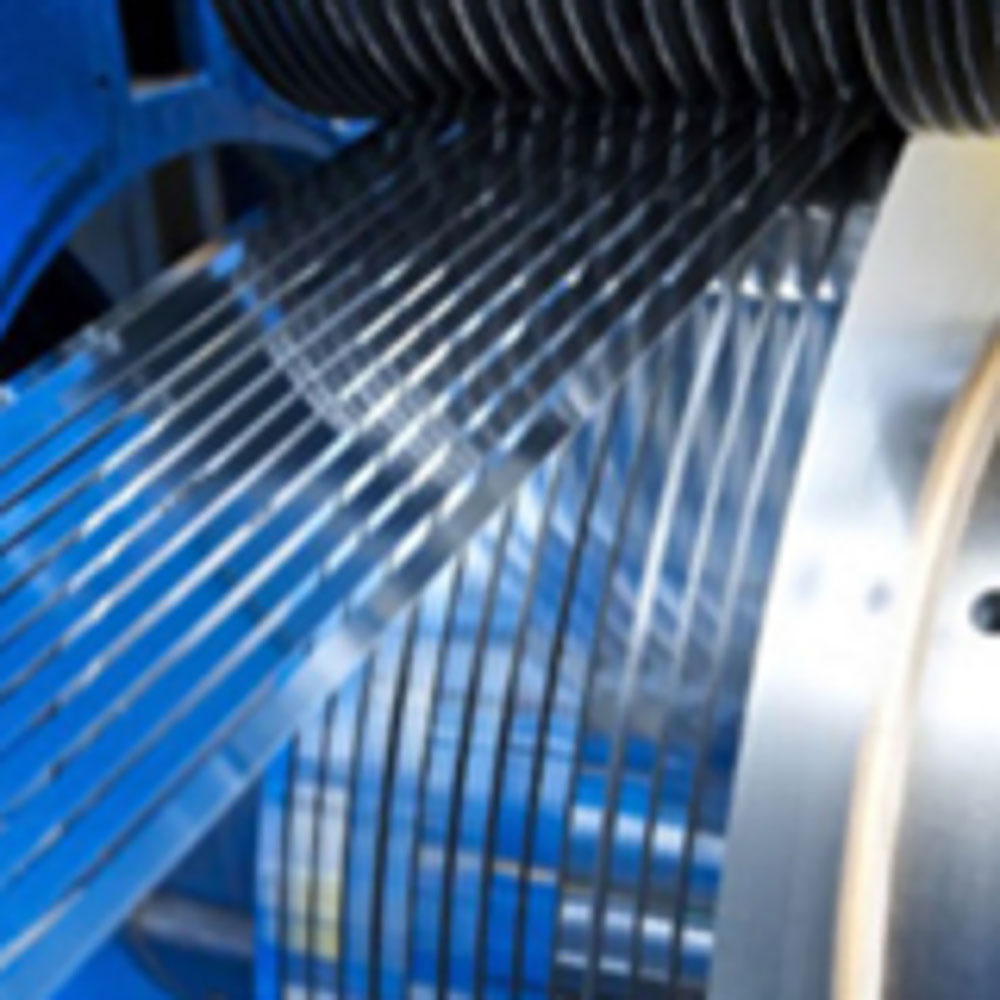

Precision Strip
304L (1.4307), 316L (1.4404)
0.10 – 0.30 mm
1000 mm
PVC protective film available
EN 10088
Medical, automotive, petrochemical, electronics
High dimensional accuracy, surface protection
Precision Strip
Grades
Thickness
Max Width
Applications
Properties

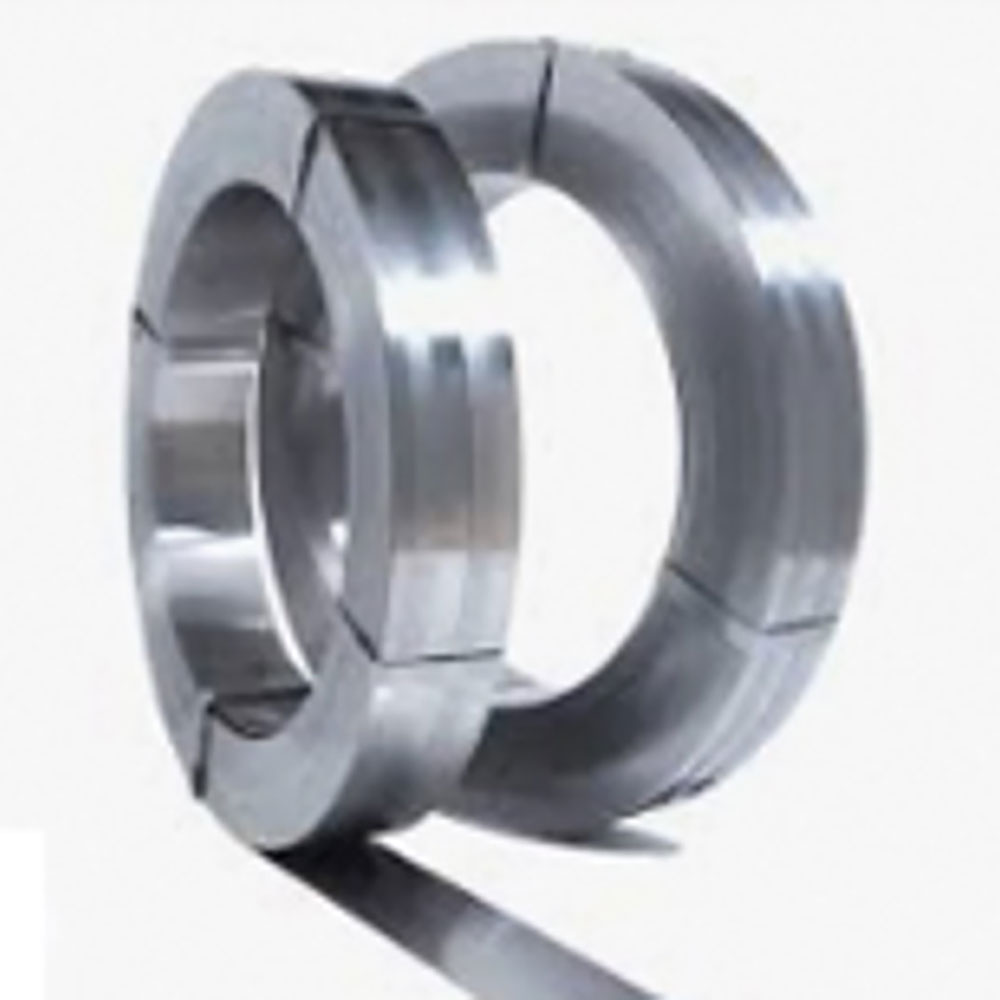

Temper Rolled Strip
Type 301, 316, 316L, 304, 304L, 430
0.15 – 1.00 mm
650 mm
Springs, trailer bodies, hose clamps, tools, utensils
High tensile strength, cold work hardened, semi-magnetic
Temper Rolled Strip

Stainless Steel: Fittings & Flanges

Secure connections. Industrial-grade confidence. Our fittings and flanges are engineered for leak-proof performance, corrosion resistance, and structural integrity in demanding environments.

Types
Grades
Finishes
Welds
Applications

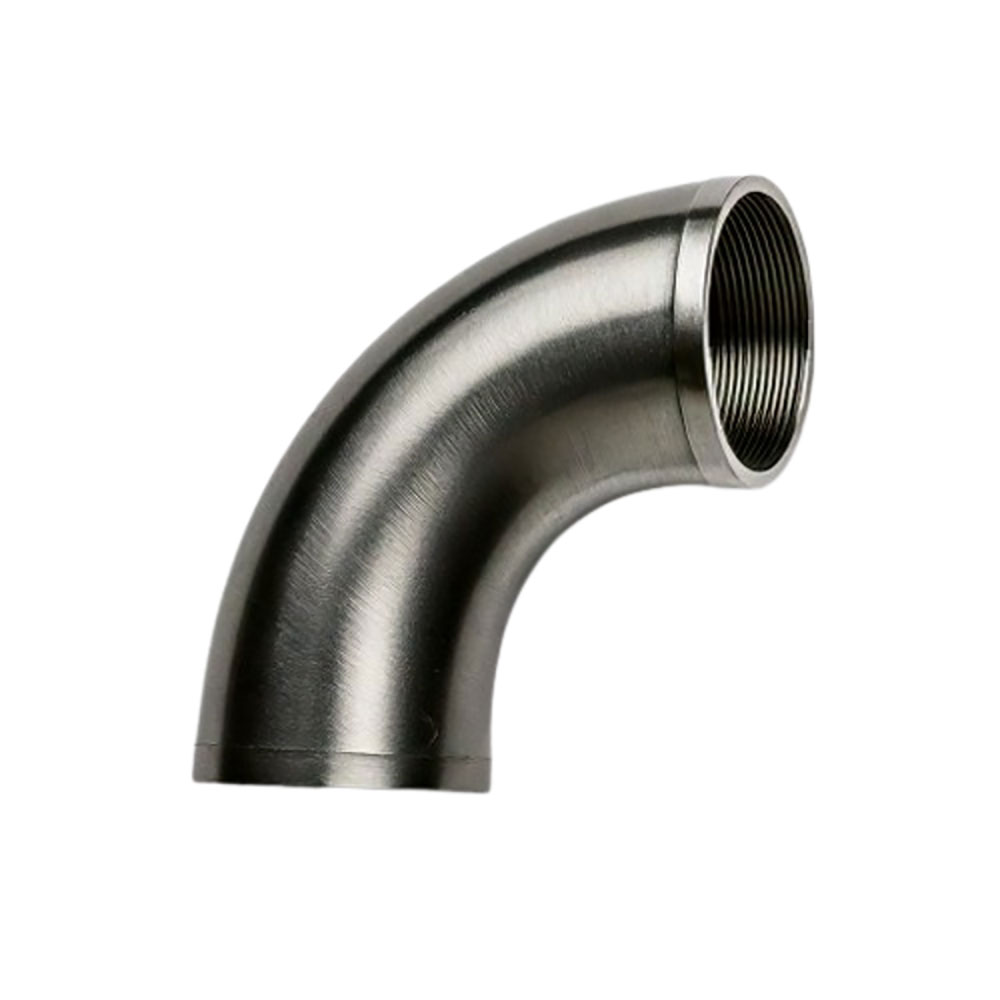

Elbows
Iso-Metric, R=3D
AISI 304, 304L, 316, 316L
Pickled, ground, polished
1 longitudinal weld
Directional flow control in piping systems
Elbows

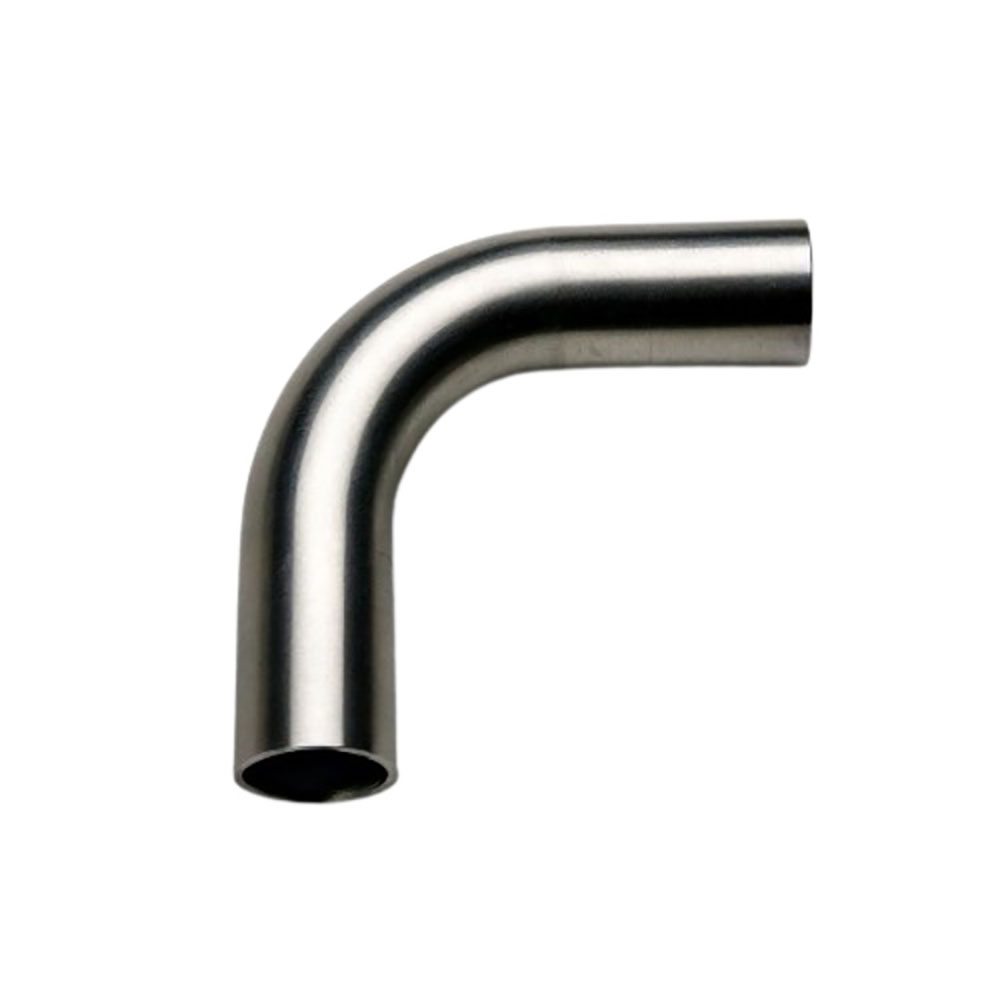

Elbows R=3D
Grades
Use
Sizes

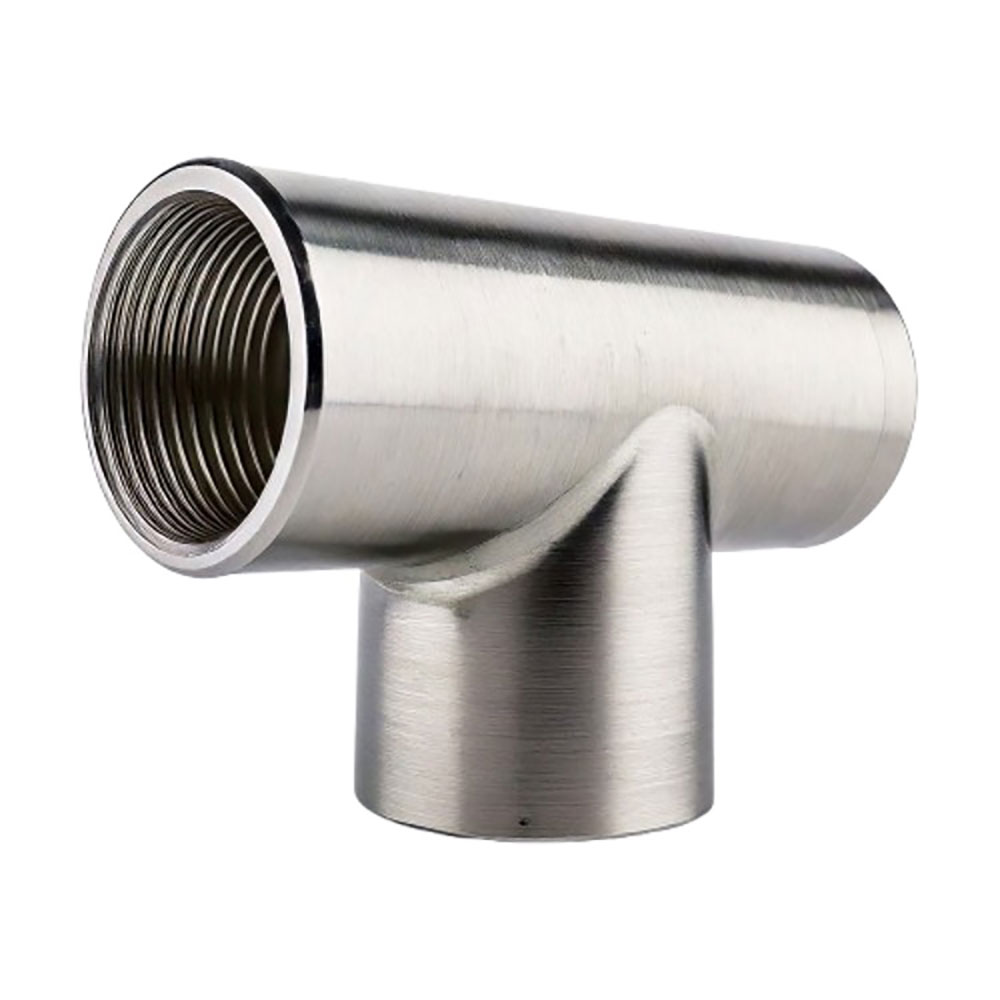

Tees
AISI 304, 304L, 316, 316L
Dividing or combining flow in pipe systems
Standard and custom
Elbows
Grades
Use
Properties

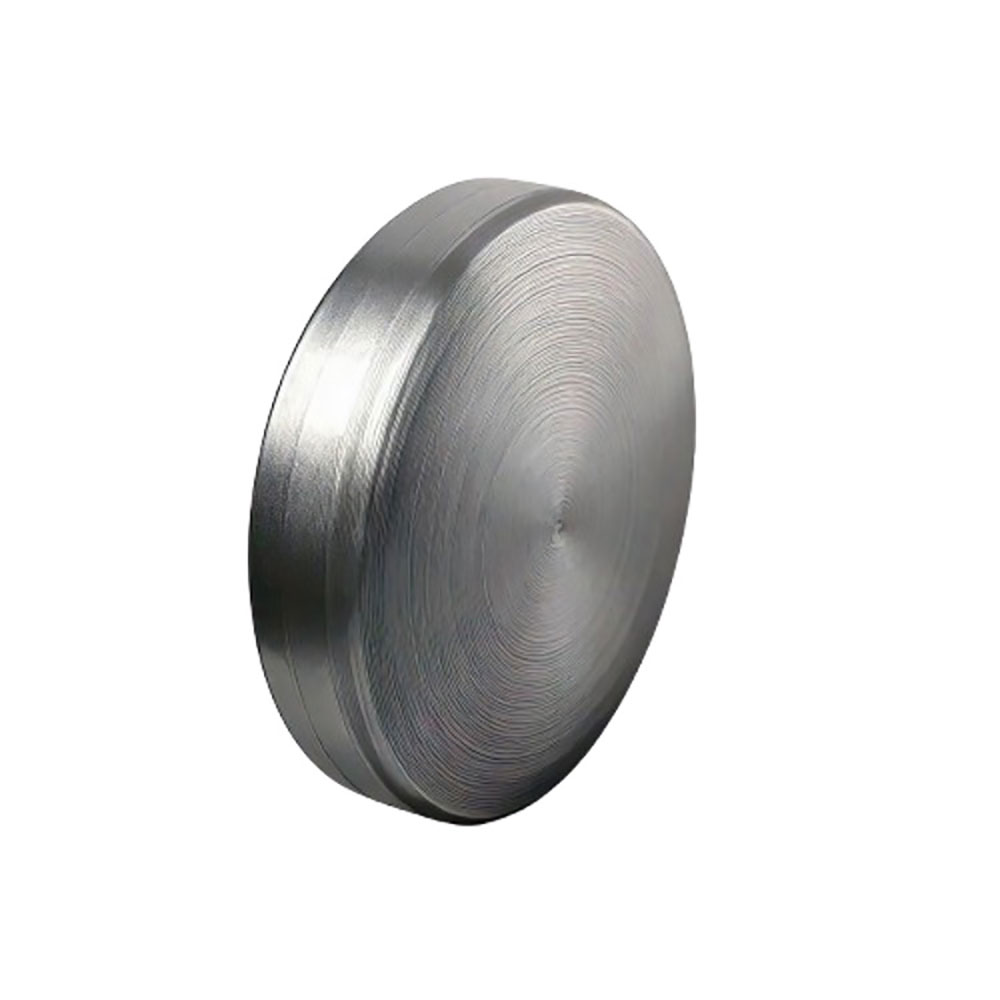

Caps
AISI 304, 304L, 316, 316L
Sealing pipe ends
Corrosion-resistant, durable, varied shapes
Caps
Types
Grades
Use
Properties

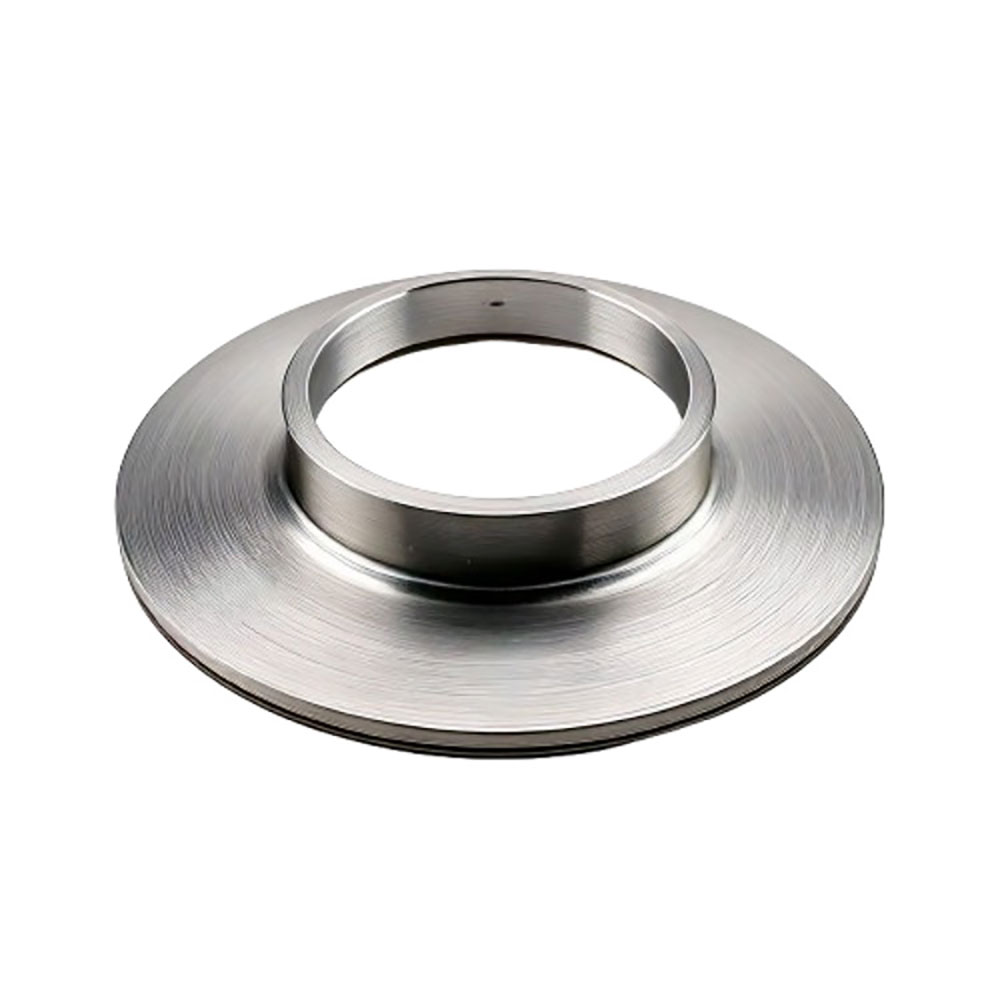

Flanges
Blind, Flat (DIN 2576 / 2642), Collar ties
DIN 2527, 2576, 2642, 2632; AISI 304, 304L, 316, 316L
Secure pipe-to-pipe or pipe-to-equipment connections
Leak-proof sealing, high-pressure tolerance
Flanges

Stainless Steel: Long Products

Strength in length. Precision in form.

Long products are the backbone of structural and architectural applications. Available in a wide range of profiles—from bars and rods to angles and beams—these materials offer exceptional corrosion resistance, mechanical strength, and dimensional consistency. Ideal for components requiring extended lengths and high-performance reliability, our stainless steel long products are also available in aluminium variants.

Diameter Range
Grades
Finishes
Heat Treatment
Tolerances
Length
Applications

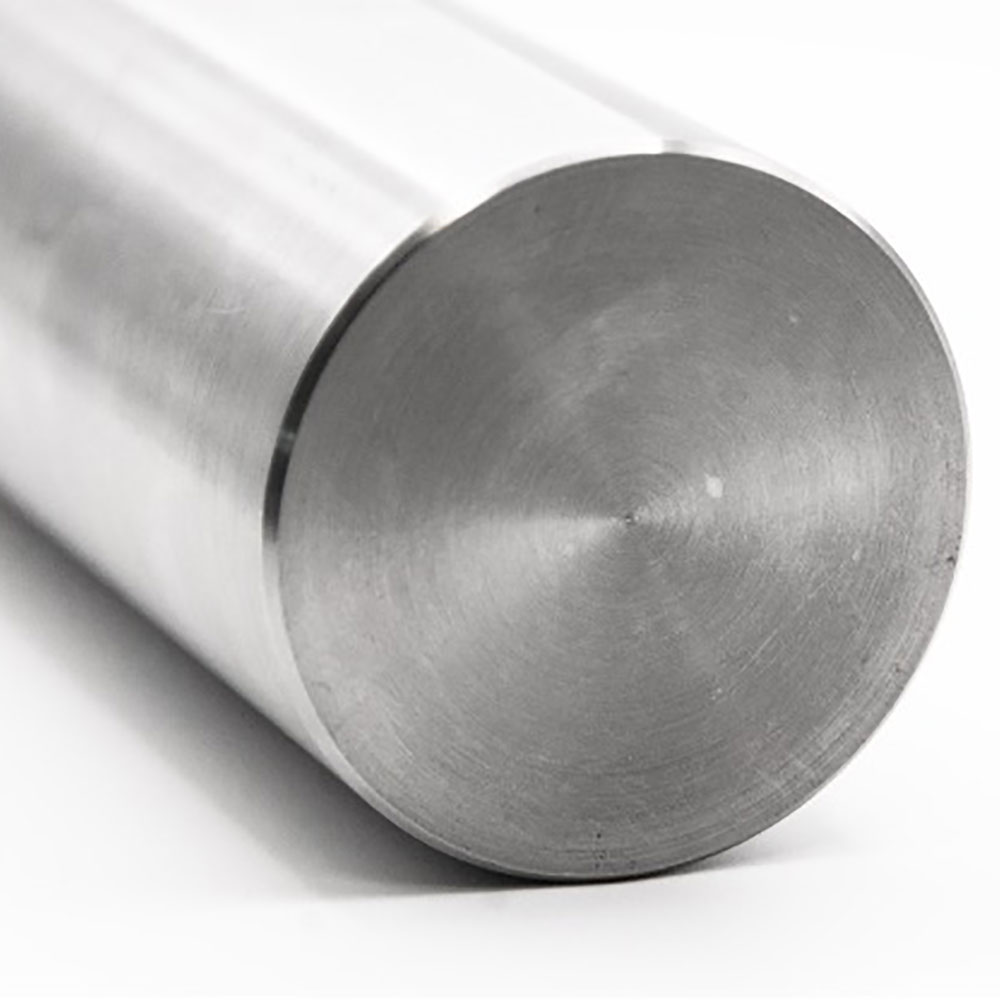

Round Bar
2 – 400 mm
AISI 303, 304, 304L, 310, 316, 316L, 321, 410, 420 (DIN 1.4021, 1.4028, 1.4034), 430, 430F, 431, 329, Duplex, 440B
Drawn, turned, peeled, forged, forged-turned, ground (on request)
Annealed, hardened (AISI 420 & 431 only)
h9 to 19mm, Grinding available on request
3 – 6 m
Shafts, pins, fasteners, structural supports

Cylindrical bars used in structural, mechanical, and decorative applications.

Round Bar
Size Range
Grades
Finishes
Heat Treatment
Tolerances
Length
Applications
Square Bar
5 – 100 mm
AISI 304, 304L, 316, 316L
Ground, laminated
Annealed
EN 10059 / EN 10278
3 – 6 m
Furniture, railings, mechanical components

Bars with square cross-section for framing, bracing, and architectural detailing.

Square Bar
Size Range
Grades
Finishes
Heat Treatment
Tolerances
Length
Applications

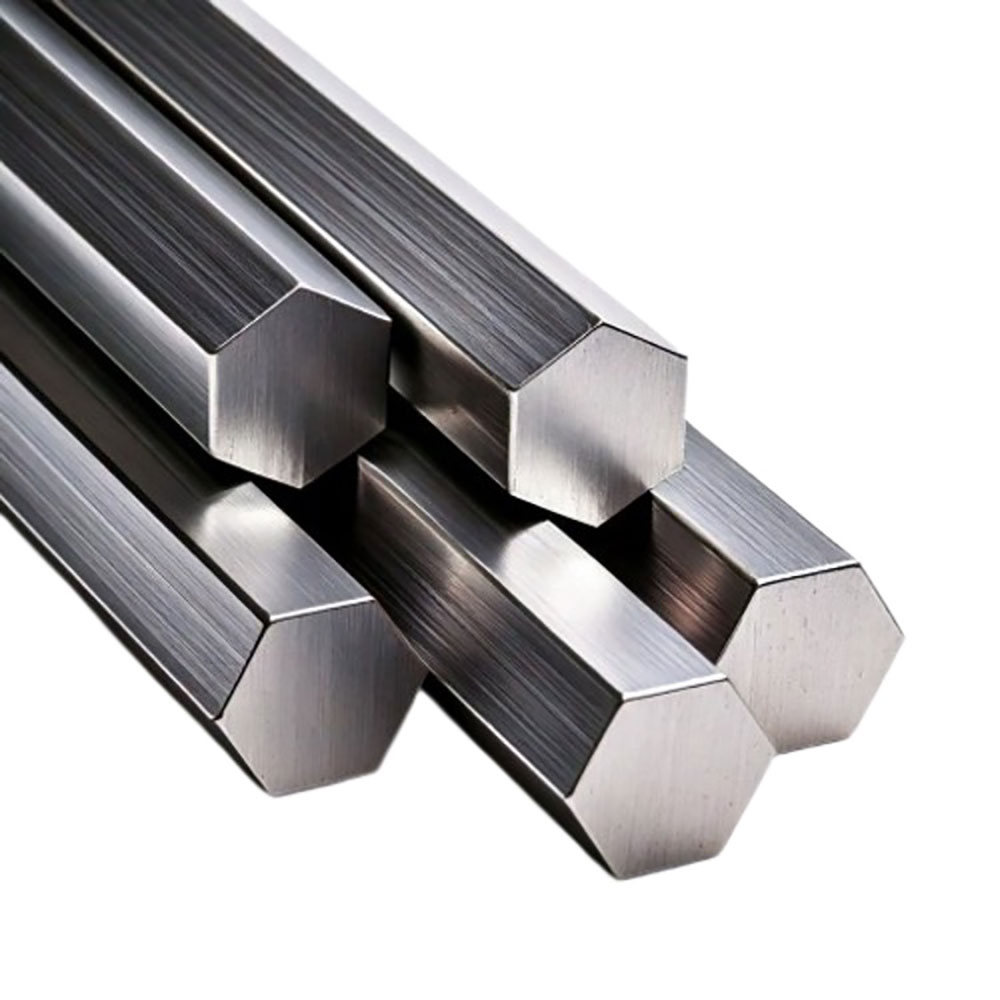

Hexagonal Bar
6 – 65 mm
AISI 303, 304, 304L, 316, 316L, 316S
Calibrated
Annealed
h11 / DIN 278
3 m (custom lengths available)
Bolts, nuts, precision components

Hex-shaped bars used in fasteners, mechanical parts, and decorative elements.

Hexagonal Bar
Grades
Finishes
Tolerances
Wall Thickness
Length
Size Range
Applications
Hollow Bar
AISI 304L, 316L, Duplex 1.4462
Pickled and passivated
ISO 2938, OD: +2% / –0% (min +1 / –0 mm), ID: +0% / –2%
–5%
2.5 – 6.9 m (depending on diameter)
32 OD × 16 mm ID to 275 OD × 200 mm ID
Hydraulic cylinders, structural tubes, machined components

Cylindrical bars with internal bore, ideal for weight reduction without compromising strength.

Hollow Bar
Grades
Finishes
Size Range
Applications
Wire
204, 302, 304, 316
Annealed, hard, bright
1.00 – 6.00 mm
Mesh, springs, reinforcement, welding

Cold-drawn wire rod available in coils or cut lengths for industrial and decorative use.

Wire
Grades
Finishes
Tolerances
Length
Size Range
Applications

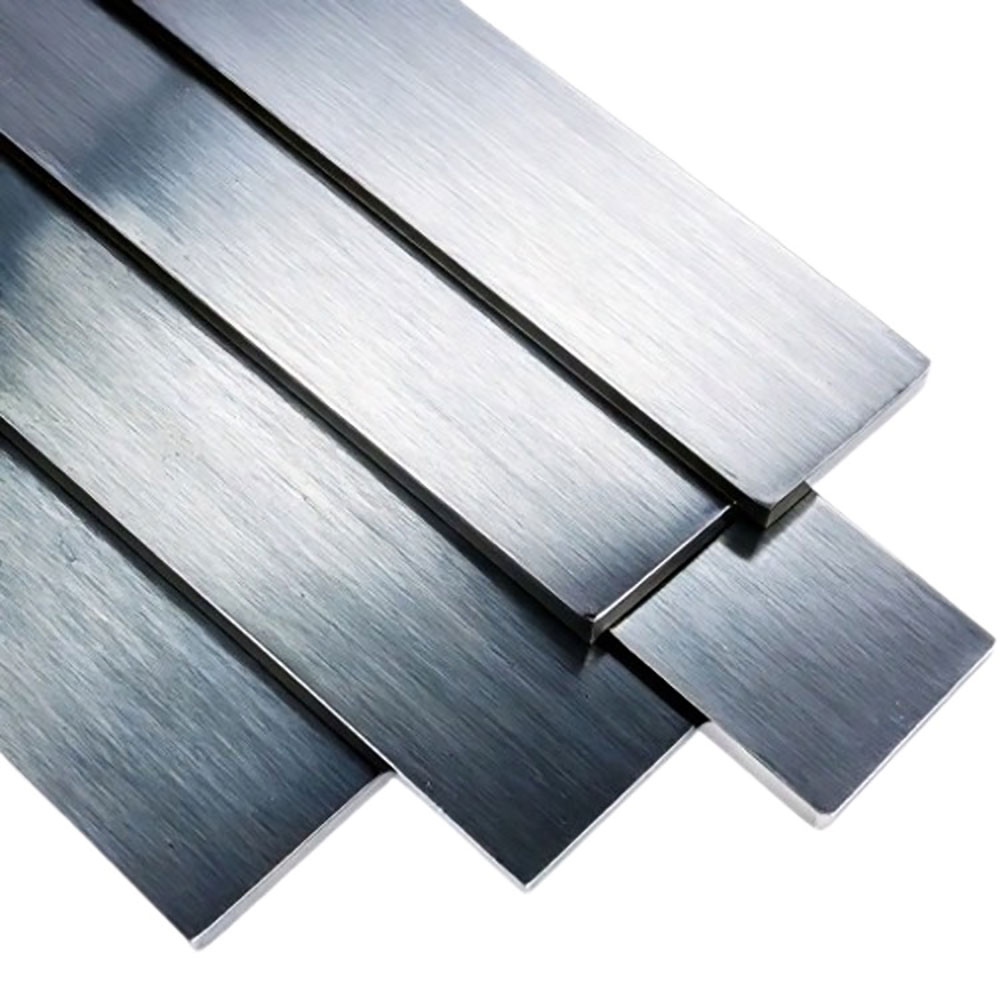

Flat Bar
AISI 304, 304L, 316, 316L, 430, 310 (MOQ applies)
Grinded, polished, satin, matt
EN 10058
6 m (custom sizes available)
10×2 – 300×8 mm
Grilles and gates, Agricultural and railway industry, Interior design furniture, Mechanical and machine components

Rectangular or square cross-section used in structural reinforcements, frames, and design elements.

Wire
Grades
Finishes
Length
Size Range
Applications

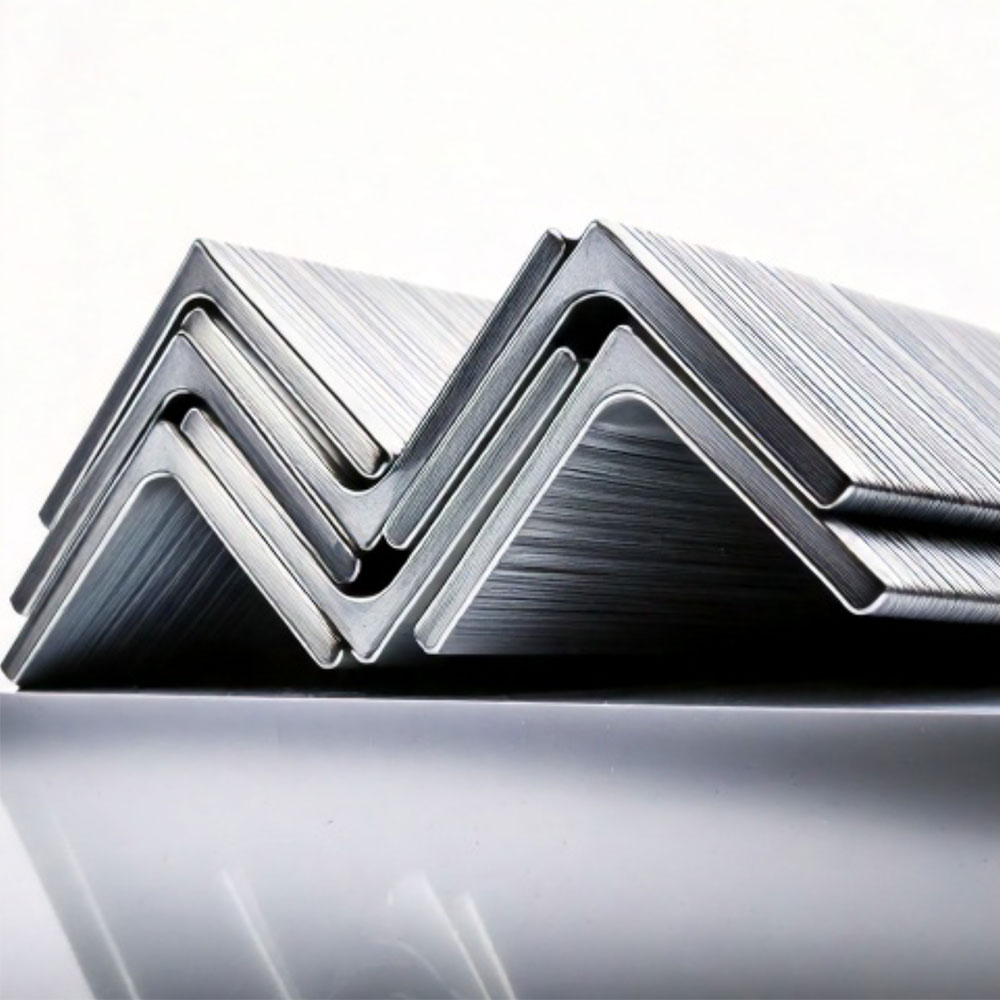

Angles
AISI 304, 304L, 316, 316L, Duplex
Hot rolled and pickled, hot extruded and pickled
6 m (custom lengths available)
15×15×1 – 100×100×10 mm
Façade framing, brackets, edge trims

L-shaped profiles for corner reinforcement, structural framing, and modular systems.

Angles
Grades
Finishes
Length
Size Examples
Size Examples
Size Examples
Size Examples
Applications

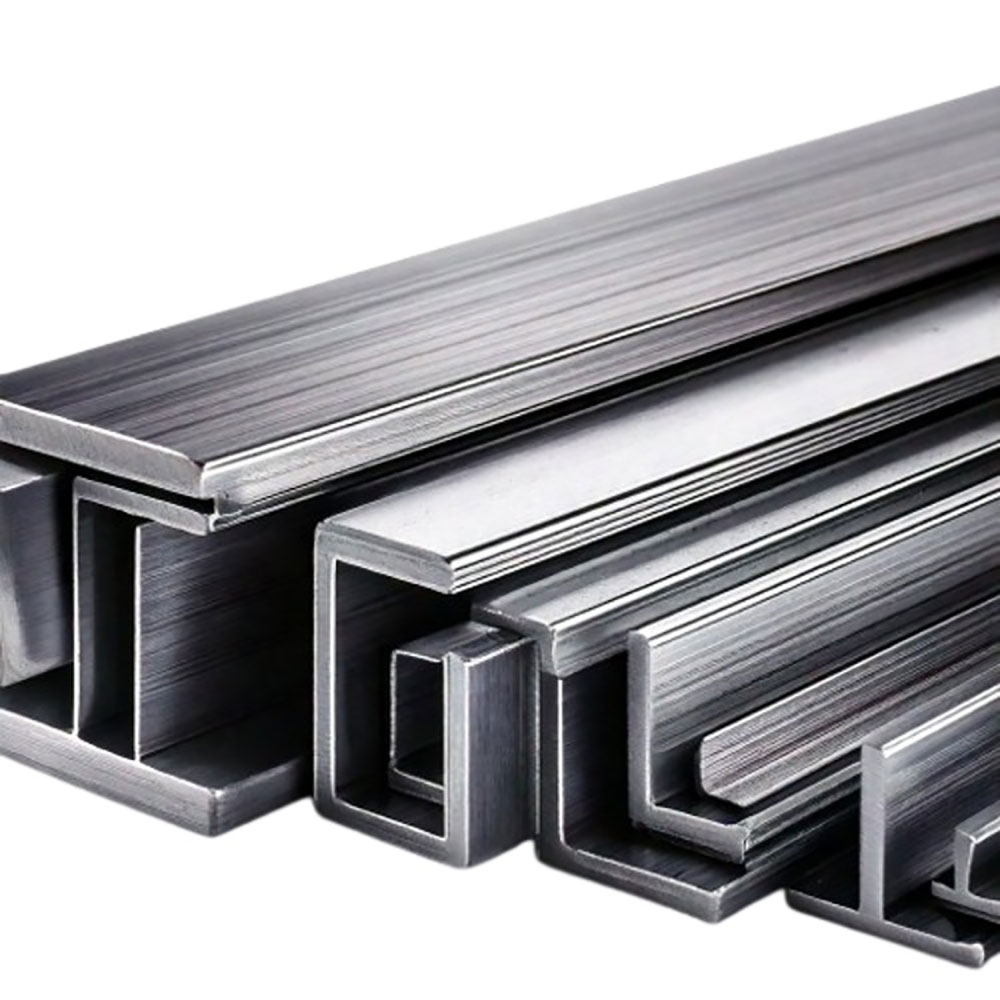

Profiles
AISI 304, 304L, 316, 316L, 316Ti, Duplex
Hot rolled and pickled, hot extruded and pickled
6 m (custom lengths available)
U-profile: 30×15×4 – 200×100×8
H-profile: 100×100×6 – 220×220×9
T-profile: 20×20×3 – 100×100×10
L-profile: 30×15×4 – 200×100×5
Structural framing, architectural detailing, modular systems

Structural components shaped to meet specific design or load-bearing requirements. Available in T, U, H, and L cross-sections.

Profiles
